This week, Steve answers questions from readers about their equipment snags -- and offers thoughts on the "perfect farm."
Q: My father has farmed with John Deere tractors since his father traded in a good set of mules at the John Deere dealer for a 1936 John Deere unstyled Model B. He got a little careless last week and topped off the cooling system with diesel on his 4440. Now, we have diesel in the cooling system. How do you recommend I deal with this problem?

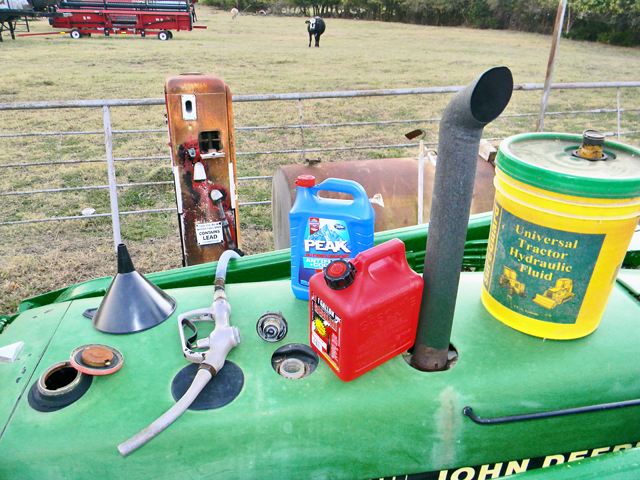

A: I have seen this before and almost have done it myself a time or two when in a hurry. However, that's not as bad as filling the diesel tank with antifreeze. When that red paint wears off that diesel fuel cap and we get in a hurry, things like this just happen. Your problem is not as harmful as filling the engine with hydraulic oil or, even worse, filling a diesel tractor with gasoline or antifreeze. The opportunities are endless (see photo). Since it is a good idea to drain and change the coolant every two years anyway, a coolant change won't be out of line this time. In order to clean the radiator, flush the radiator and cooling system with radiator flush a couple of times as recommended on the product. Then, refill with a 50-50 blend of coolant and distilled water. Or, available now is coolant that is already mixed. A 50-50 blend will keep an engine cooler than a straight fill of antifreeze.
Q: I don't understand why an engine needs a timing advance. I have a 3010 John Deere diesel and a 3020 John Deere diesel. The 3010 has no timing advance in the injector pump, but the 3020 does. When I had the 3010 injector pump rebuilt, the rebuilder asked me if I wanted to add a timing advance in the 3010 pump. Why do I need it?
A: I get the question about timing across my desk several times a year. The timing advance in an engine can be set up in several ways, but it's a way of making an engine more responsive, fuel efficient and powerful throughout its speed. It takes about 0.002 of a second for the explosion that begins the power stroke to reach its maximum force, and at that time, the piston needs to be about 12 degrees after it has begun its downward power stroke. At 1,000 rpms, the piston travels 16 degrees in 0.002 of a second. As the engine speed increases, the piston moves more degrees during this 0.002 explosion time, which is constant. So, if the engine is running at 1,000 rpms, then the injection on a diesel (or spark on a gas engine) must occur at 4 degrees before the piston reaches top dead center for the maximum explosion to occur at 12 degrees past top dead center. If the engine speed is increased to 2,000 rpms, the piston now travels 32 degrees during the 0.002 that's required for the explosion to reach its maximum power, so the injection or spark must occur at 20 degrees before top dead center for the maximum force to occur at 12 degrees after top dead center. Now you know why your 3010 has such a deep sound at idle. Without a timing advance in the pump, the timing is really off at idle speed, but it has to be for the engine to be in time at working speed. With the timing advance installed in your 3010, the engine will sound more like the 3020.
WARM IS BEST
Q: When changing the engine oil in a truck or tractor, when do you think is the best time to drain the oil: when the engine is cold, or when the engine is hot?
A: I like to let the engine warm to operating temperature, shut it down, wait a minute or so, and then drain the oil. This sequence allows the oil to circulate throughout the engine in a warm state and pick up as many contaminants as possible that are suspended in the warm liquid. Waiting a minute or so before draining allows the warm oil throughout the engine to drain down, picking up more contaminants before it reaches the oil pan before draining. If possible, fill the new oil filter with oil before installing on the engine. This allows the oil pump to pressurize the system faster because it doesn't have to fill the oil filter before full oil pressure throughout the engine is reached.
FIVE STEPS FROM THE PERFECT FARM
-- I will train my dog not to stick his nose on the windows of my truck.
-- I will fix the gate so that it will not drag.
-- I will not let the seed in my grain drill sprout.
-- I will not stick black tape over warning lights on my tractor dash.
-- I will not let my neighbor borrow my hay baler.
